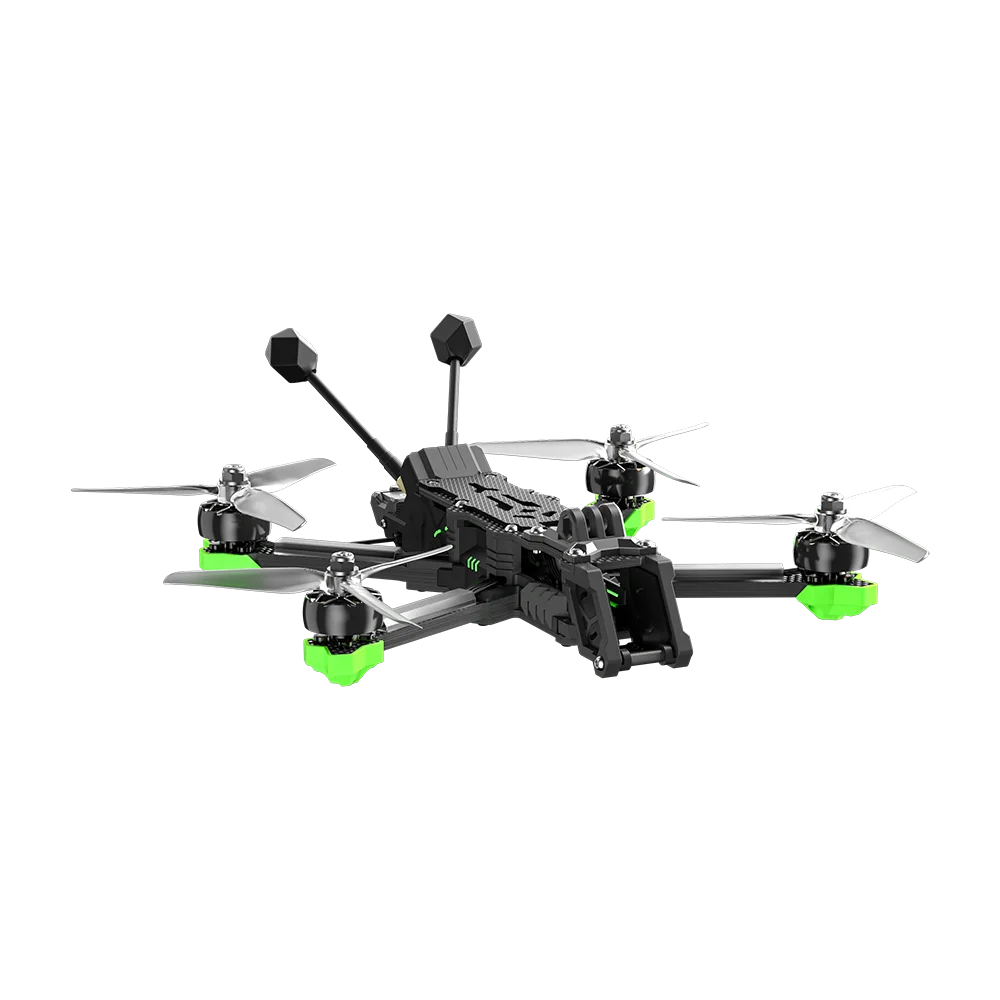

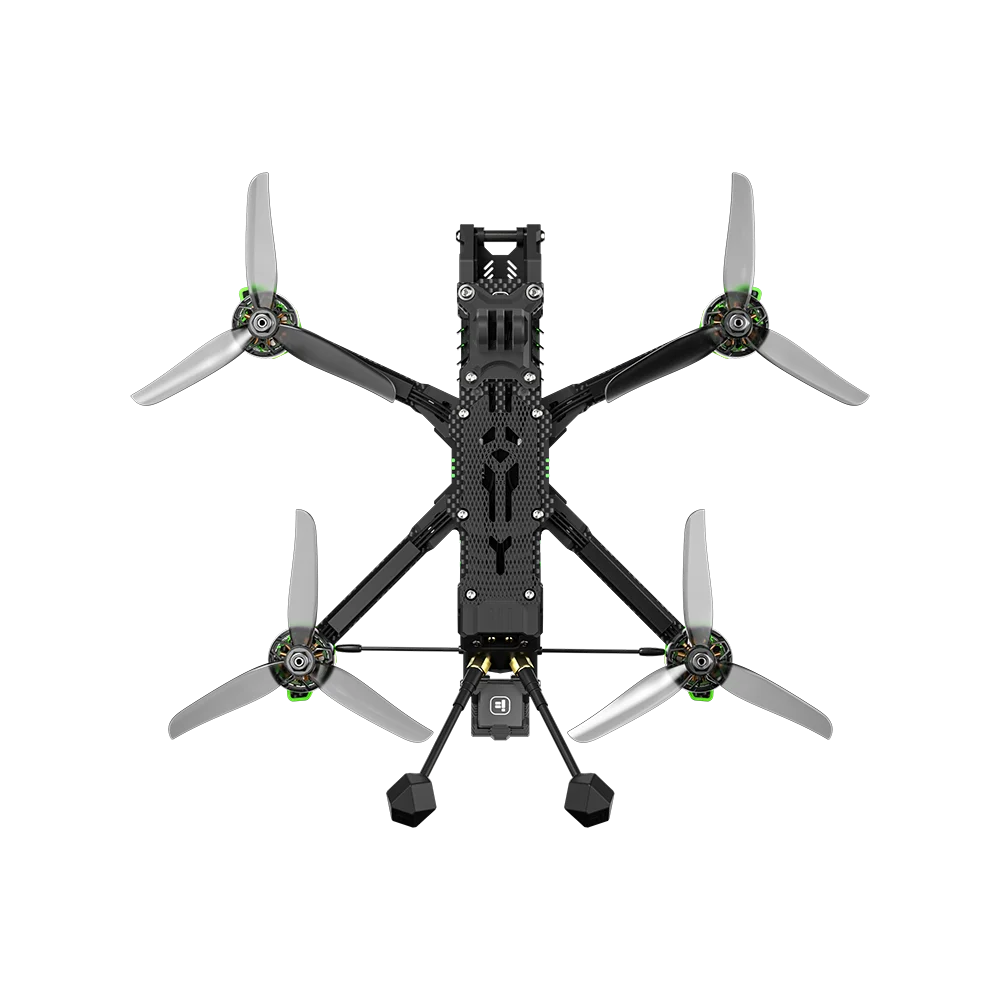

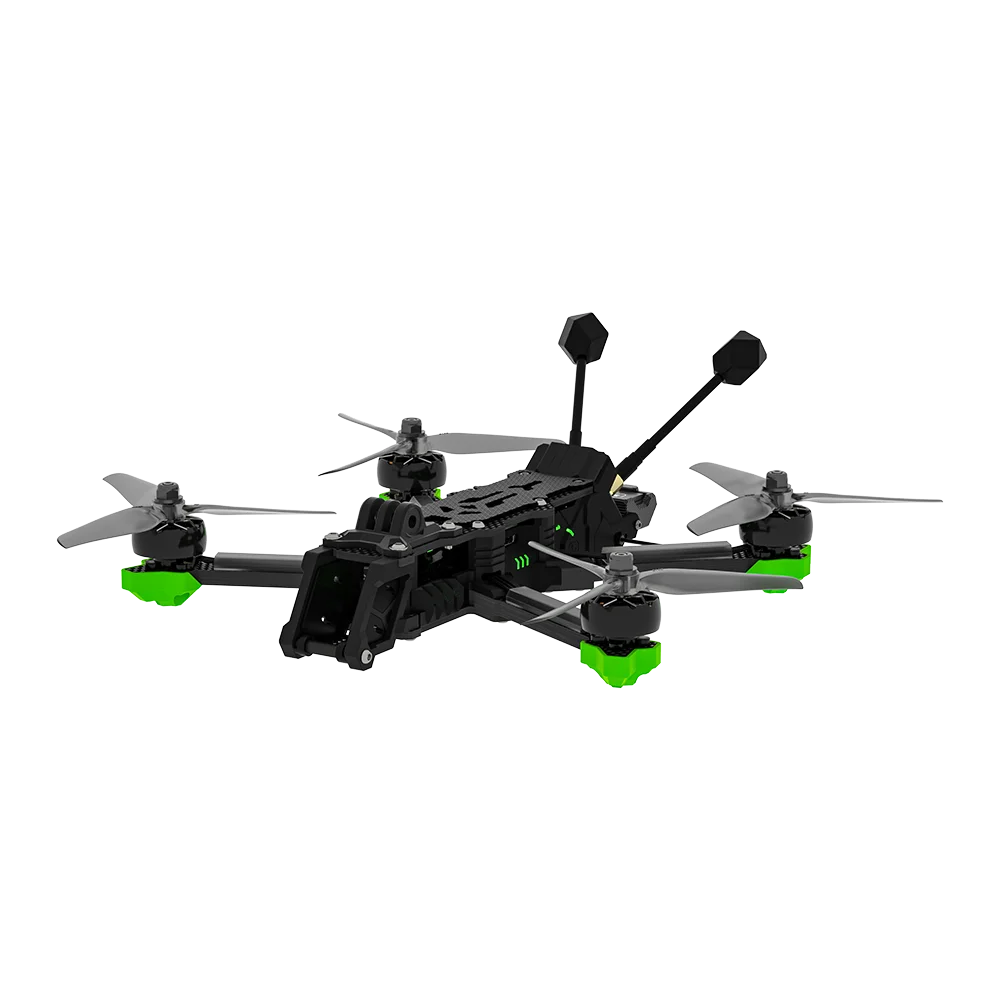

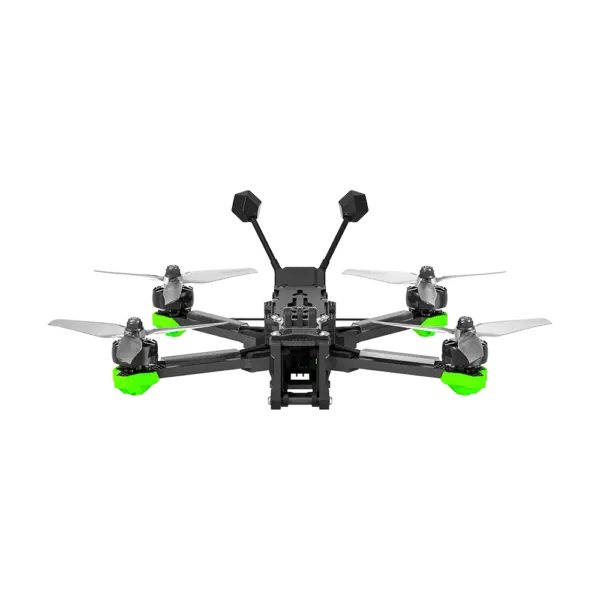

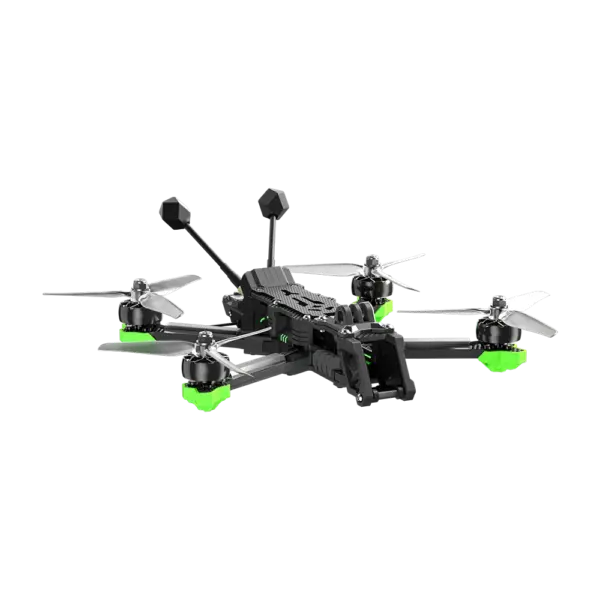

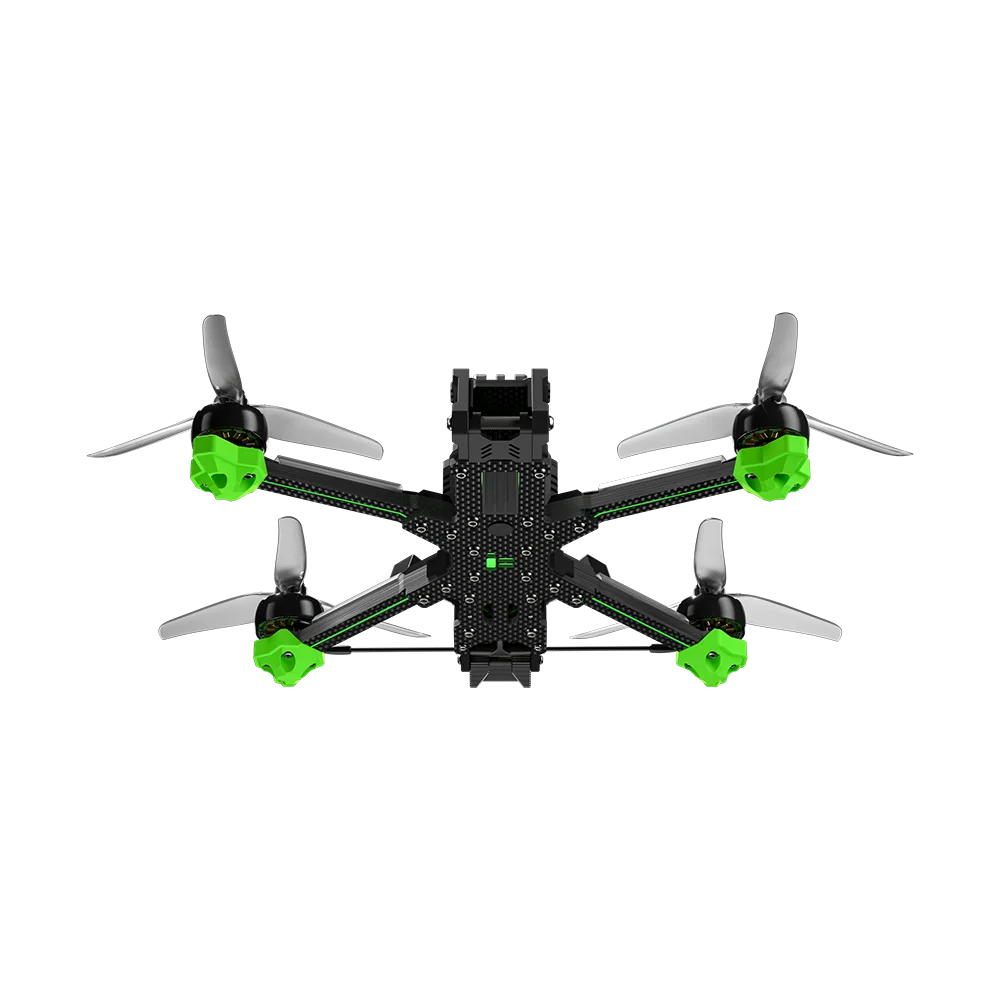

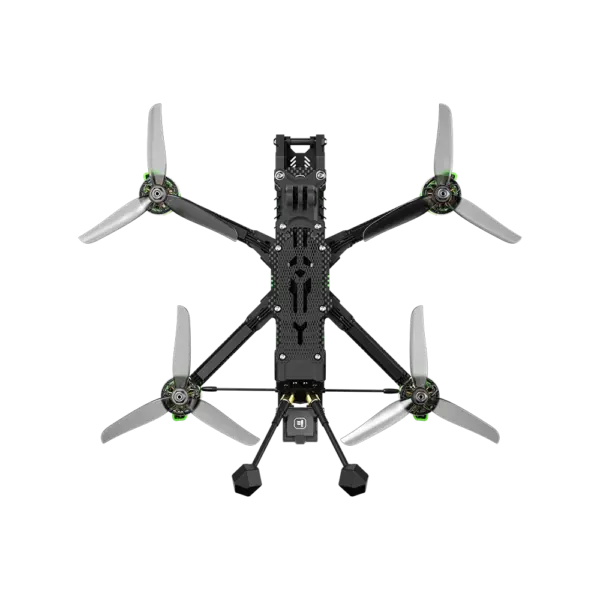

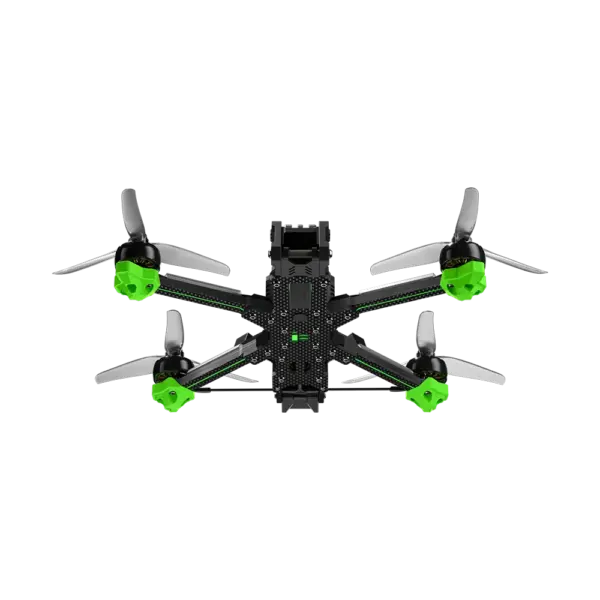

iFlight Nazgul Evoque F5 V3 6S FPV Drone – Dual Geometry, 190 km/h

Product Description

Overview

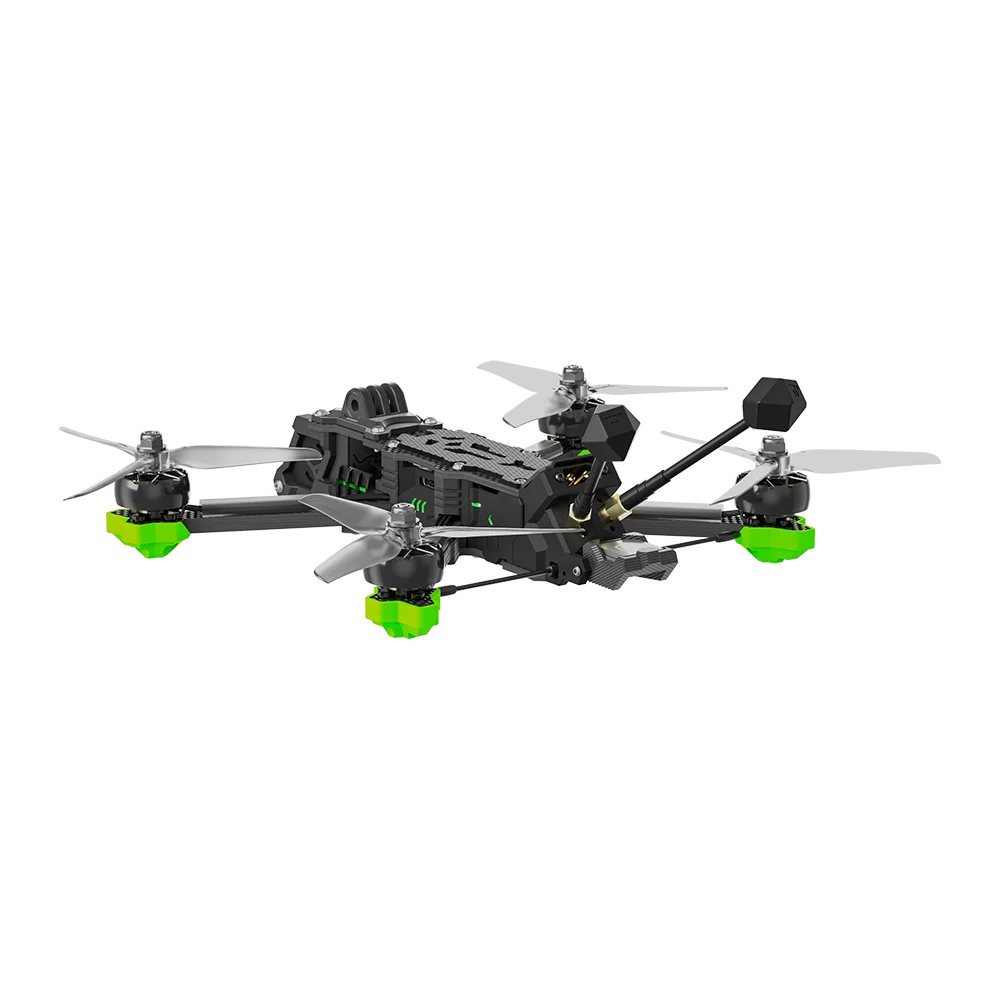

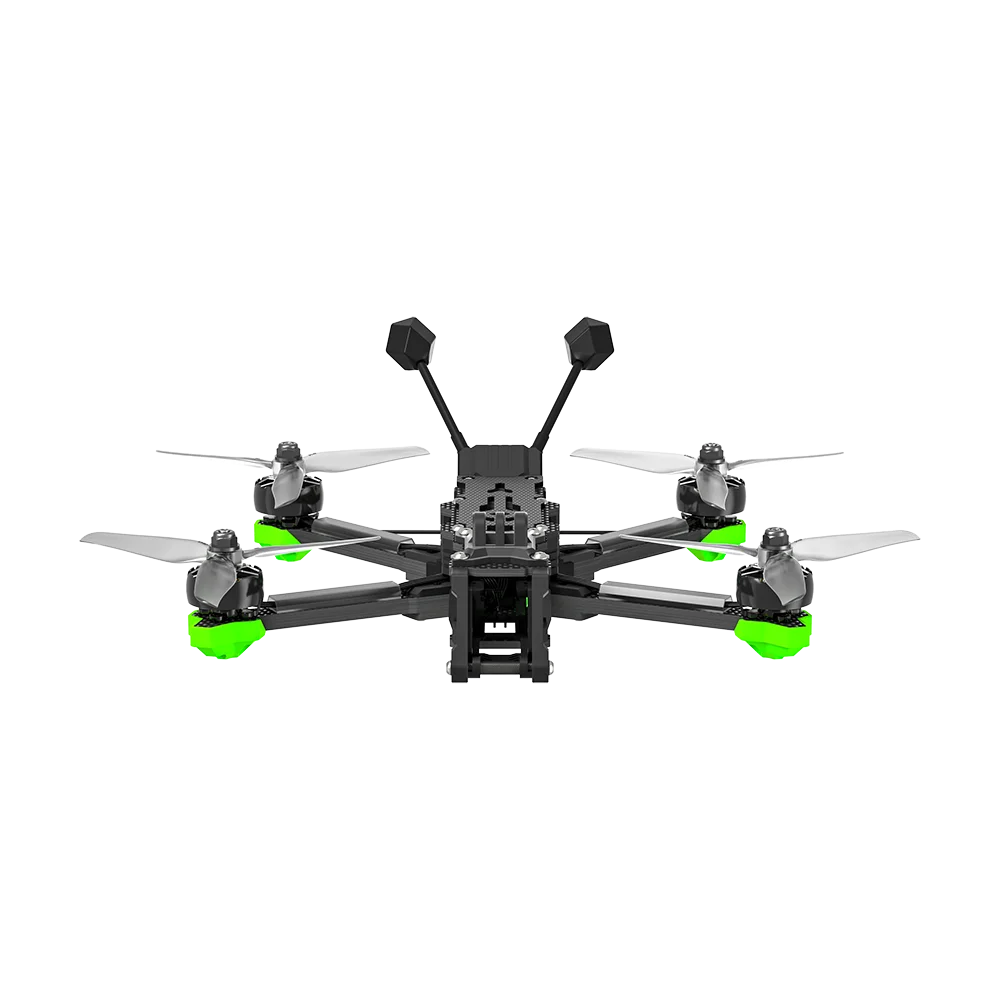

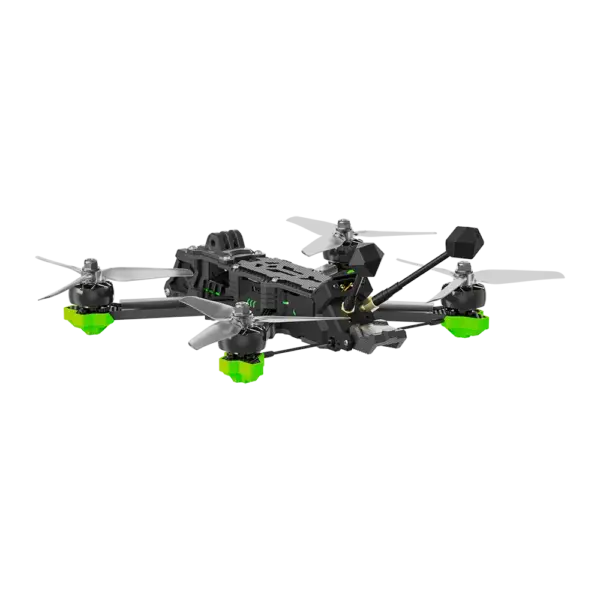

The iFlight Nazgul Evoque F5 V3 6S WTFPV is a high-performance FPV drone designed for freestyle and cinematic flying. With a flexible frame design, powerful electronics, and premium build quality, it delivers speed, durability, and precision for advanced pilots.

Compatibility

• Camera and VTX not included (DIY setup required)
• Compatible with:
  • DJI O4 Air Unit Pro HD
  • BLITZ Whoop 1.6W VTX
  • BLITZ Mini Force 600mW VTX

Key Features

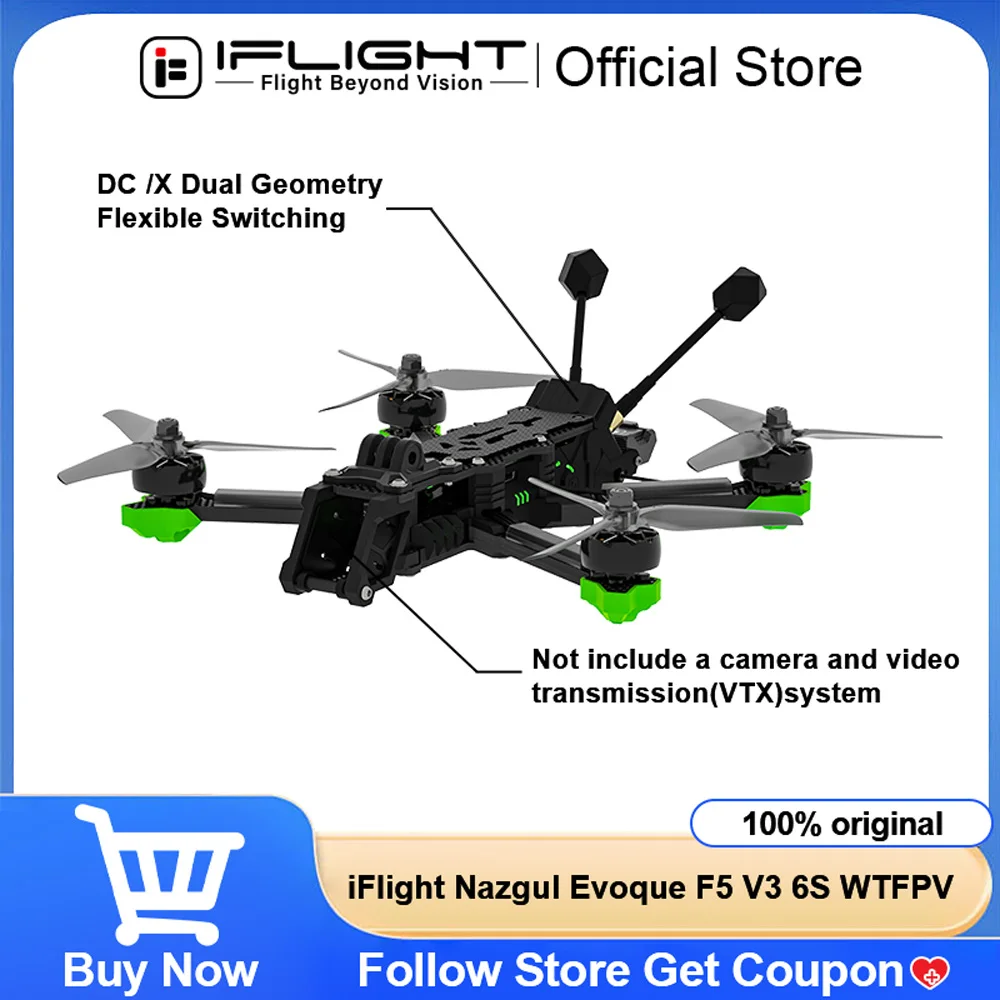

Dual Geometry Frame

• Switch between DeadCat (DC) and True X configurations
• DC mode: cinematic shots without propellers in view
• X mode: agile freestyle performance

Advanced Electronics

• Borg Mini F7 Flight Controller
• Borg Mini 60A ESC
• Anti-spark filter for safer operation
• Dual BEC power supply
• Built-in capacitor for improved stability

Cooling & Build Quality

• Fin-shaped cooling system for better heat dissipation
• Injection-molded parts for durability and smooth finish
• Designed for high-performance flight in all conditions

Flight Performance

• Max Speed: up to 190 km/h
• Max Hover Time: approx. 12–13 minutes
• Max Takeoff Altitude: up to 7000 m
• Operating Temperature: -10°C to 40°C

Specifications

General

• Model: Evoque F5 V3 WTFPV
• Weight: 460 ± 5 g
• Takeoff Weight: approx. 704 ± 5 g (with battery)

Frame

• Geometry: DeadCat (default) / True X (switchable)
• Wheelbase:
  • 236 mm (DC)
  • 239 mm (True X)

Dimensions

• DC Mode: 230 × 207 × 54 mm
• X Mode: 207 × 199 × 54 mm

Motors & Propellers

• Motor: XING2 2207 1750KV
• Propellers: Nazgul F5

Camera Mount

• Adjustable angle: 10° – 45°

Navigation (Optional)

• GNSS support: GPS / SBAS / Galileo / QZSS / GLONASS

Antennas

• Dual antennas

In the Box

• 1 × Evoque F5 V3 6S WTFPV Drone
• 2 × Antennas
• 1 × Battery Pad
• 2 × Propeller Pairs
• 2 × Battery Straps
